How to choose suitable lens for Neon?

Here’s the lens selector tool from Basler website. Please enter your criteria and we’ll show you suitable lens models.

Step 1: Select camera series and model

Takes Neon-203B for example

Step1

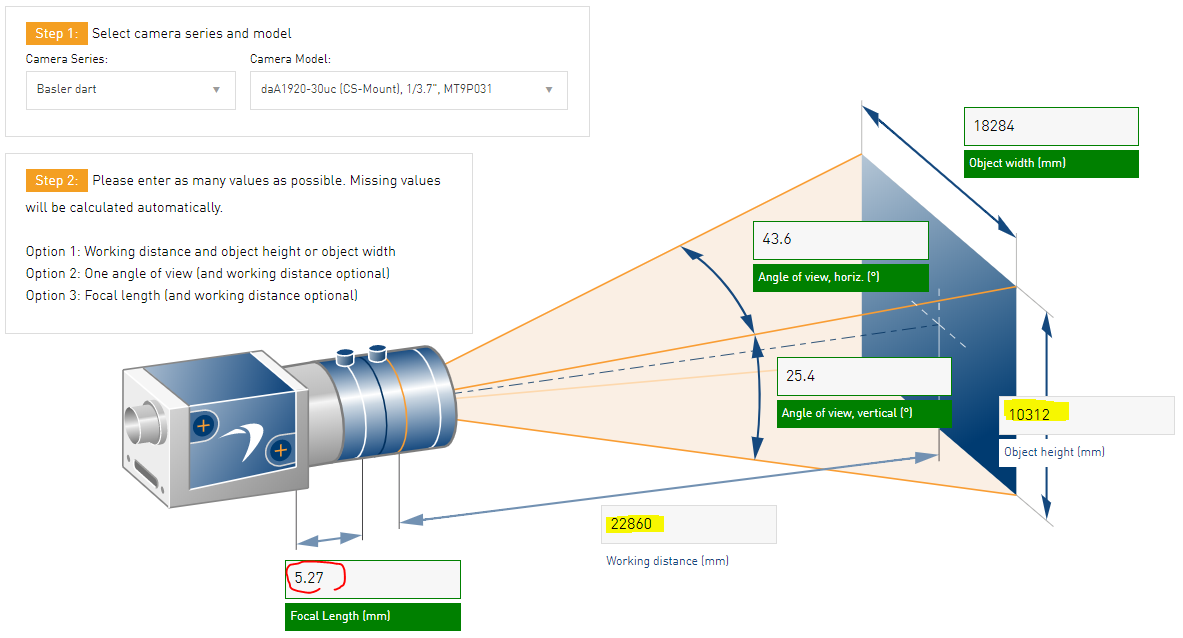

Step 2: Please enter as many values as possible. Missing values will be calculated automatically.

Take example for real case: 1. At 75ft(22860 mm) needs to support a field of view that is 406 inches (10312 mm) X 406 inches (10312 mm) 2. And supports a 10ft depth of field

Step2

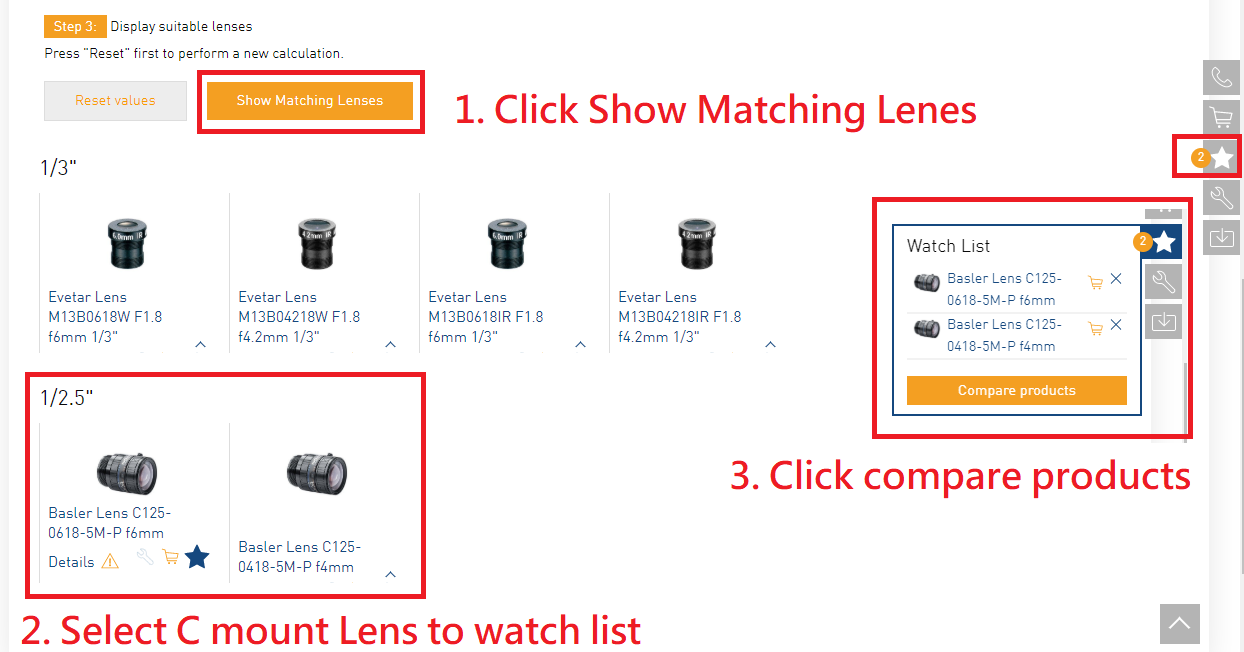

Step 3: Display suitable lenses

If you want to use the lens with a CS-mount camera, a distance ring (5 mm) must be attached to the lens.

Step3

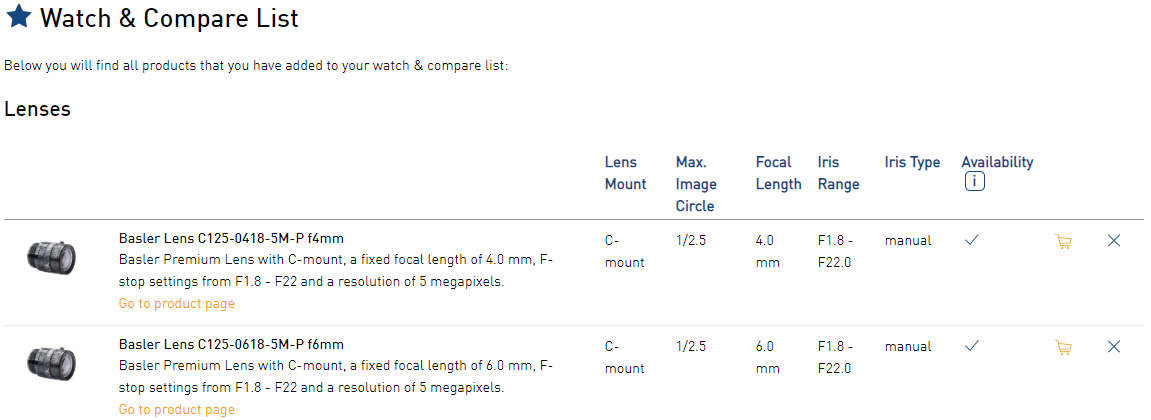

Step 4: You can contact with your vendor and find the similar spec of lenses.

Kindly remind you that the smaller focal length may cause “fisheye” effect.

Step4

The document from Basler website explains what you should know when selecting a lens for your camera.
